Disc Brake Road gravel asymmetrical Carbon Rims 28mm External Width 30mm 35mm 40mm 45mm 50mm profile

SKU:
28mm external width 21m internal width special for road bike disc brake. 20,24 ,28,32 holes.
5 (2 Reviews)
8 Sold
$270.00 $96.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • carbon weave:
    ud matt
    ud glossy
    3k matt
    3k glossy
  • Tire type:
    tubular
    tubeless
  • spoke holes:
    20 holes
    24 holes
    28 holes
    32 holes
  • profiles:
    30mm
    35mm
    40mm
    45mm
    50mm
  • Spoke hole diameter:
    4.5mm external
    2.5mm internal
    No assembling holes
Quantity
-
+
Carbon bicycle rims 30mm,35mm, 40mm 45mm, 50mm profile 21mm inner width
Item No.: RMTB3028ASL/RMTB3528A-SL/RKTB4028A-SL/RKTB4528A-SL/RKTB5028A-SL
Material: toray T700+T800
Carbon Weave: UD
Brake type: Disc brake(no brake track)

Finished: matte or glossy (please advise once place order)
Tire type: Tubeless(compatible with clincher) or tubular
Sizes: 700C

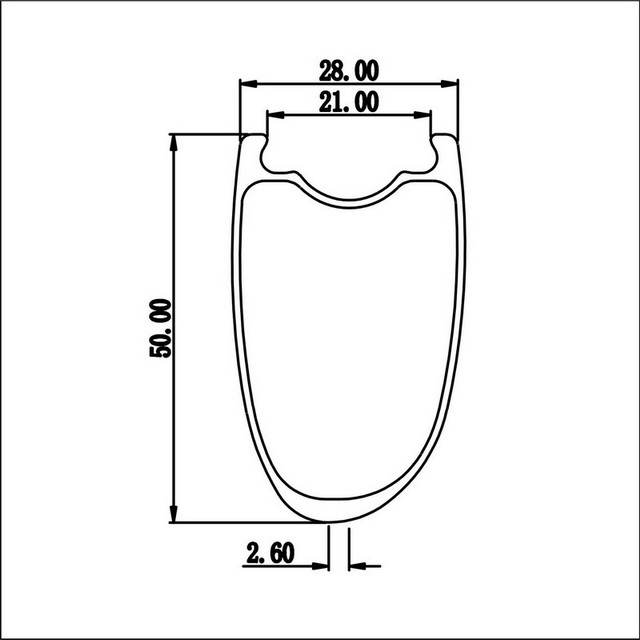

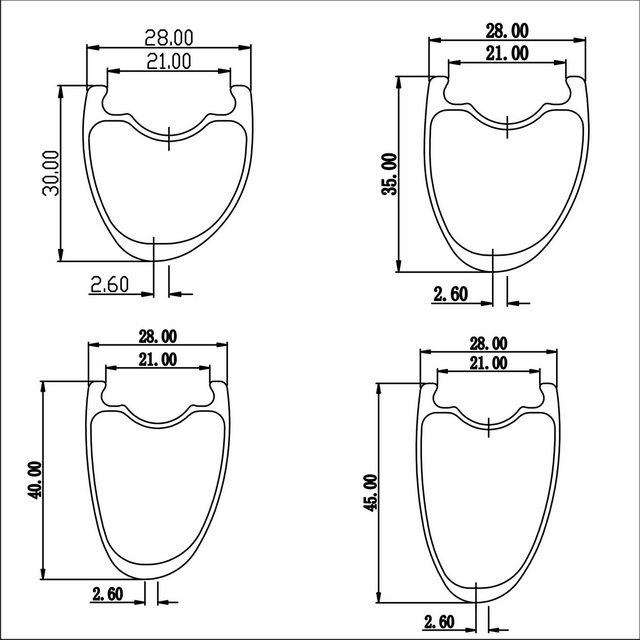

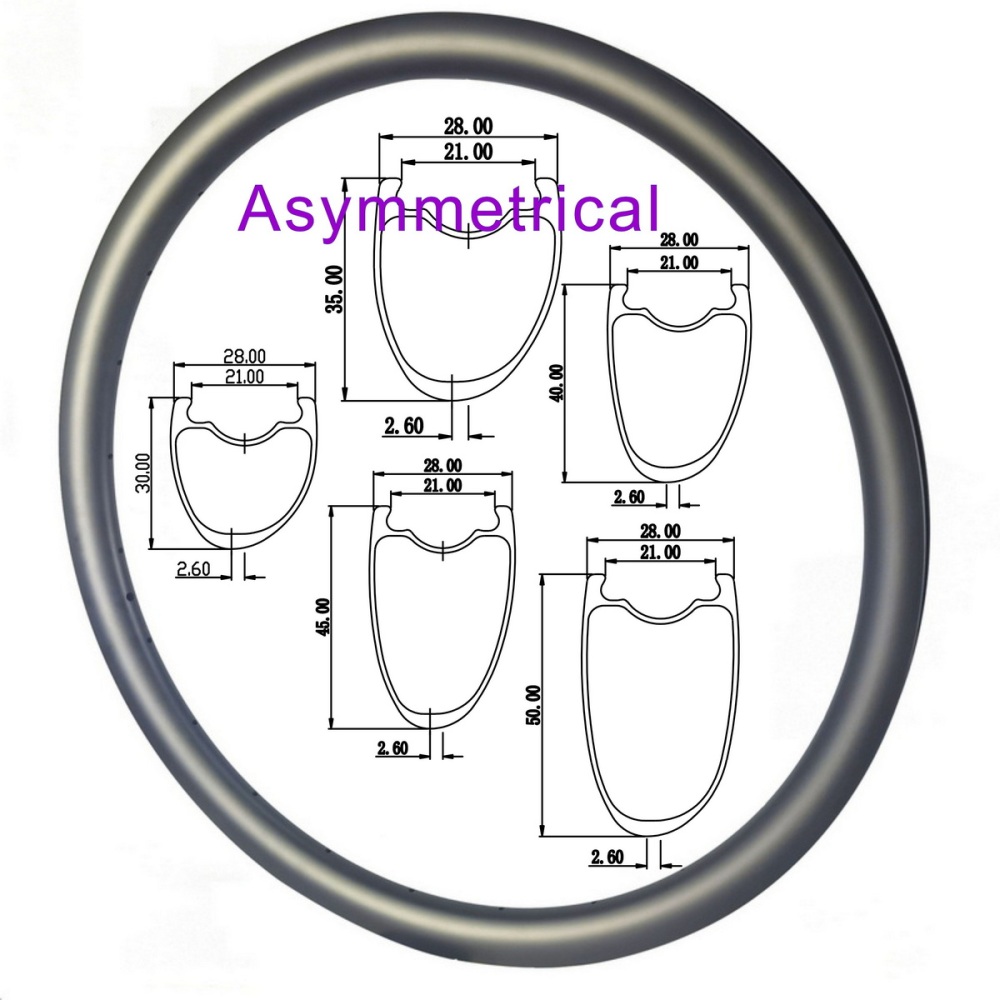

Rim depth: 30mm, 35mm,40mm, 45mm,50mm
External width: 28mm width
Internal width: 21mm
ERD: 579mm(30mm profile) 569mm(35mm profile)559mm(40mm profile)
549mm(45mm profile) 529mm(55mm profile)
Spokes hole: 20/24/28H
Rim weight Tubeless: 360±15g(30mm) 370±15g(35mm)390±15g(40mm)  405±15g(45mm)  430±15g(50mm)

Rim weight Tubular:350±15g(30mm) 360±15g(35mm) 400±15g(45mm) 440±15g(55mm)

Max. Tire pressure: 130 psi
Max. spoke tension: 280 kgf
Rider weight limited: 120kg
Warranty: 2 years warranty.
About shipping and customs taxes.

1, Customers from below EU countries, we highly recommend you to choose dpd /DHL/XDB shipping. It is faster and duty free.

UK,France,Belgium,Polland,CzechRepublic,Austria, Netherlands,Denmark,
Germany,Ireland,Italy,Spain, Portugal,Sweden,Greece,Luxembourg, Finland. Austra,


2, Customers from North America(America and Canada), we recommend you to chose UPS shipping. It is faster and also duty free.

3, Standard shipping EMS may cause customs taxes when package arrive you especially for customers from Europe. And you need to make customs declaration or you can’t receive the package.
MORE DETAILS PHOTOS:






TIMETECBIKE WHEELS WARRANTY POLICY
Timetec bike offer 2 years warranty for this series carbon rims. If you find any manufacturer defects, we will off new products for replace ment. And buyer need to pay shipping cost.
