Light 700C Road Carbon Rims 30mm External Width 30mm 35mm 40mm 45mm 50mm Profiles Tubeless With Hook
Toray T800 Super Light Road Carbon Rims 30mm external width 24mm Internal Width
(1 Reviews)
26 Sold
Super light 700C Road carbon rims 30mm width
Rims profiles: 30mm,35mm,40mm,45mm, 50mm
Model number: RKTB30
Materials: Toray T700+T800
Carbon weave: UD
Finished: matt or glossy
Rim external width : 30mm
Rim internal width: 24mm
Tire type: tubeless(with hook)
Brake type: Disc brake

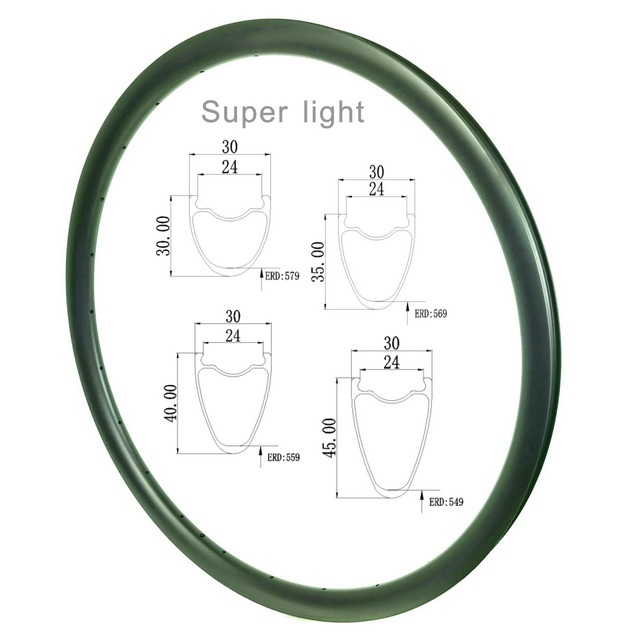

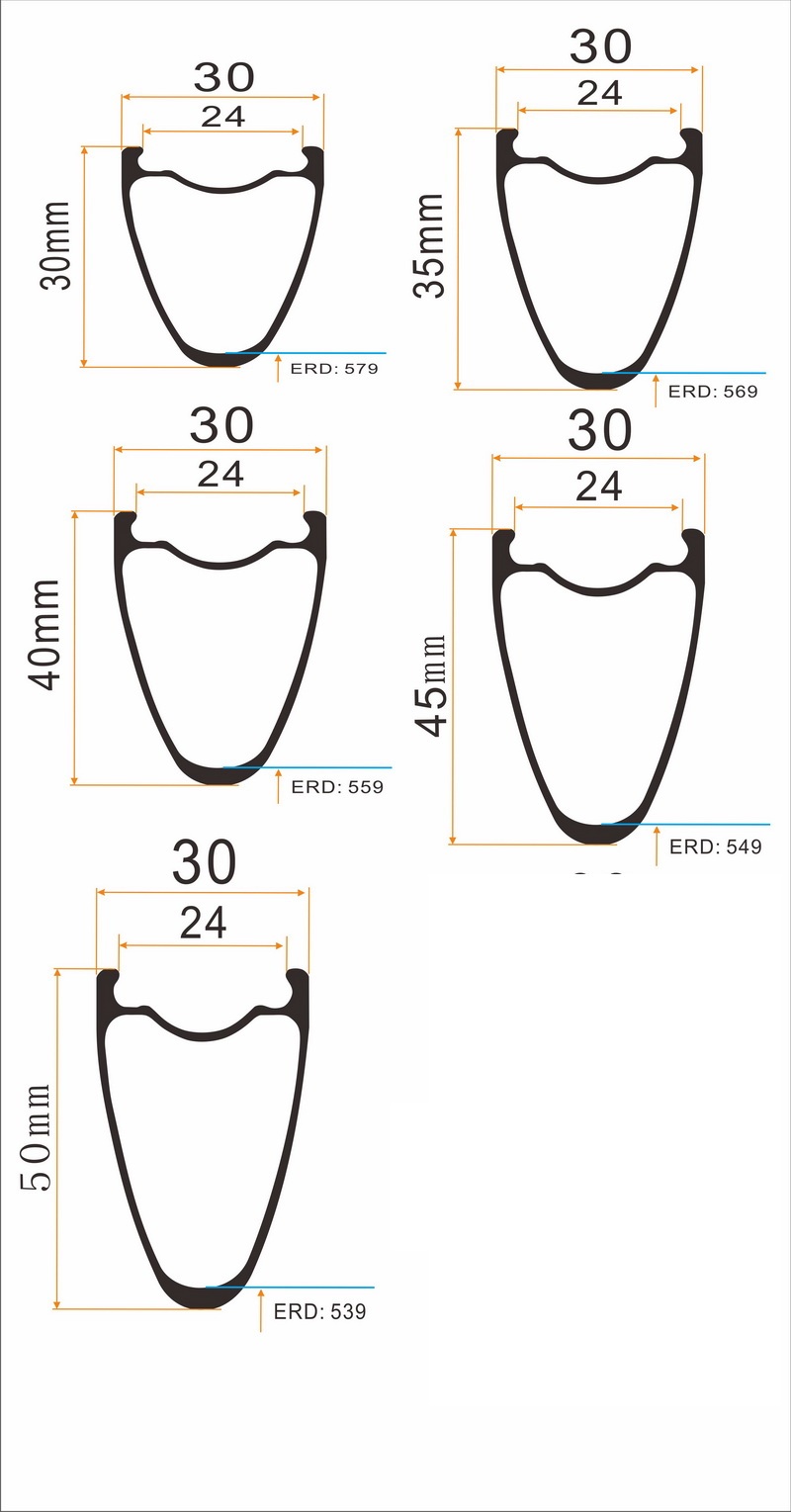

ERD: see detailed cross section drawings
Spoke holes: 20/24/28H
Spoke holes diameter : 4.5mm (standard) 2.5mm(internal holes)
Rims weight: 365±10g(30mm)370±10g(35mm)395±15g(40mm)
400±15g(45mm)430±15g(50mm)
Max. Tire pressure: 130 psi
Max. spoke tension: 130 kgf
Rider weight limited: 110kg
More Details photos:
Rims profiles: 30mm,35mm,40mm,45mm, 50mm
Model number: RKTB30
Materials: Toray T700+T800
Carbon weave: UD
Finished: matt or glossy
Rim external width : 30mm
Rim internal width: 24mm
Tire type: tubeless(with hook)
Brake type: Disc brake
ERD: see detailed cross section drawings
Spoke holes: 20/24/28H
Spoke holes diameter : 4.5mm (standard) 2.5mm(internal holes)
Rims weight: 365±10g(30mm)370±10g(35mm)395±15g(40mm)
400±15g(45mm)430±15g(50mm)
Max. Tire pressure: 130 psi
Max. spoke tension: 130 kgf
Rider weight limited: 110kg
