Disc Brake Road Bike Carbon Rims 28mm External Width 30mm 35mm 40mm 45mm 55mm profile
28mm external width 21m internal width special for road bike disc brake. 20,24 ,28,32 holes.
(0 Reviews)
0 Sold
Carbon bicycle rims 30mm,35mm, 40mm 45mm, 55mm profile 21mm inner width
Item No.: RMTB3028/RMTB3528/RKTB4028/RMTB4528/RMTB5528
Material: toray T700(standard weight)
Carbon Weave: UD,3K,12K
Brake type: Disc brake(no brake track)
Finished: matte or glossy (please advise once place order)
Tire type: Tubeless(compatible with clincher) or tubular
Sizes: 700C
Rim depth: 30mm, 35mm,40mm, 45mm,55mm
External width: 28mm width
Internal width: 21mm

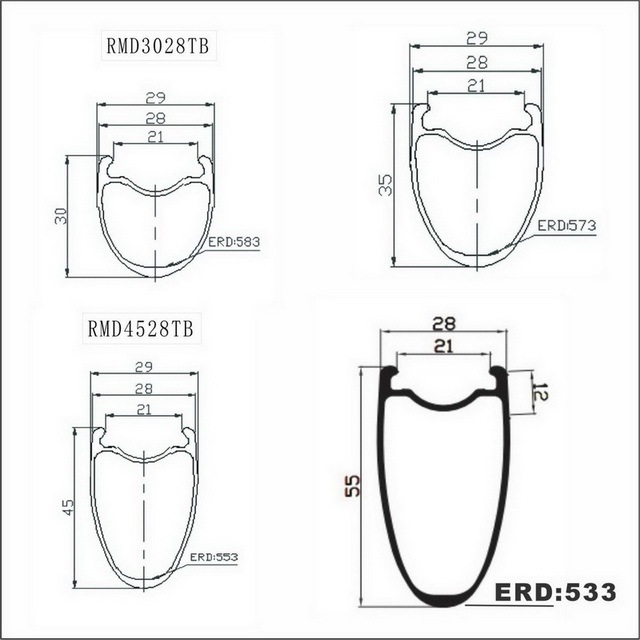

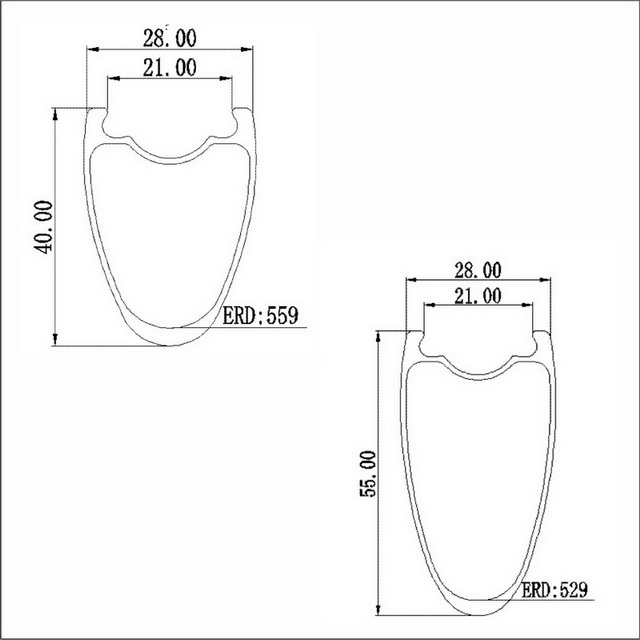

ERD: 579mm(30mm profile) 569mm(35mm profile)559mm(40mm profile)
549mm(45mm profile) 529mm(55mm profile)
Spokes hole: 20/24/28H
Rim weight Tubeless: 430±15g(30mm) 455±15g(35mm)425±15g(40mm) 465±15g(45mm) 470±15g(50mm) 520±15g(55mm)
Rim weight Tubular:350±15g(30mm) 360±15g(35mm) 400±15g(45mm) 440±15g(55mm)
Max. Tire pressure: 130 psi
Max. spoke tension: 280 kgf
Rider weight limited: 120kg
Warranty: 2 years warranty.
About shipping and customs taxes.
1, Customers from below EU countries, we highly recommend you to choose dpd /DHL/XDB shipping. It is faster and duty free.
UK,France,Belgium,Polland,CzechRepublic,Austria, Netherlands,Denmark,
Germany,Ireland,Italy,Spain, Portugal,Sweden,Greece,Luxembourg, Finland. Austra,
2, Customers from North America(America and Canada), we recommend you to chose UPS shipping. It is faster and also duty free.
3, Standard shipping EMS may cause customs taxes when package arrive you especially for customers from Europe. And you need to make customs declaration or you can’t receive the package.
MORE DETAILS PHOTOS:
TIMETECBIKE WHEELS WARRANTY POLICY
Timetec bike offer 2 years warranty for this series carbon rims. If you find any manufacturer defects, we will off new products for replace ment. And buyer need to pay shipping cost.
